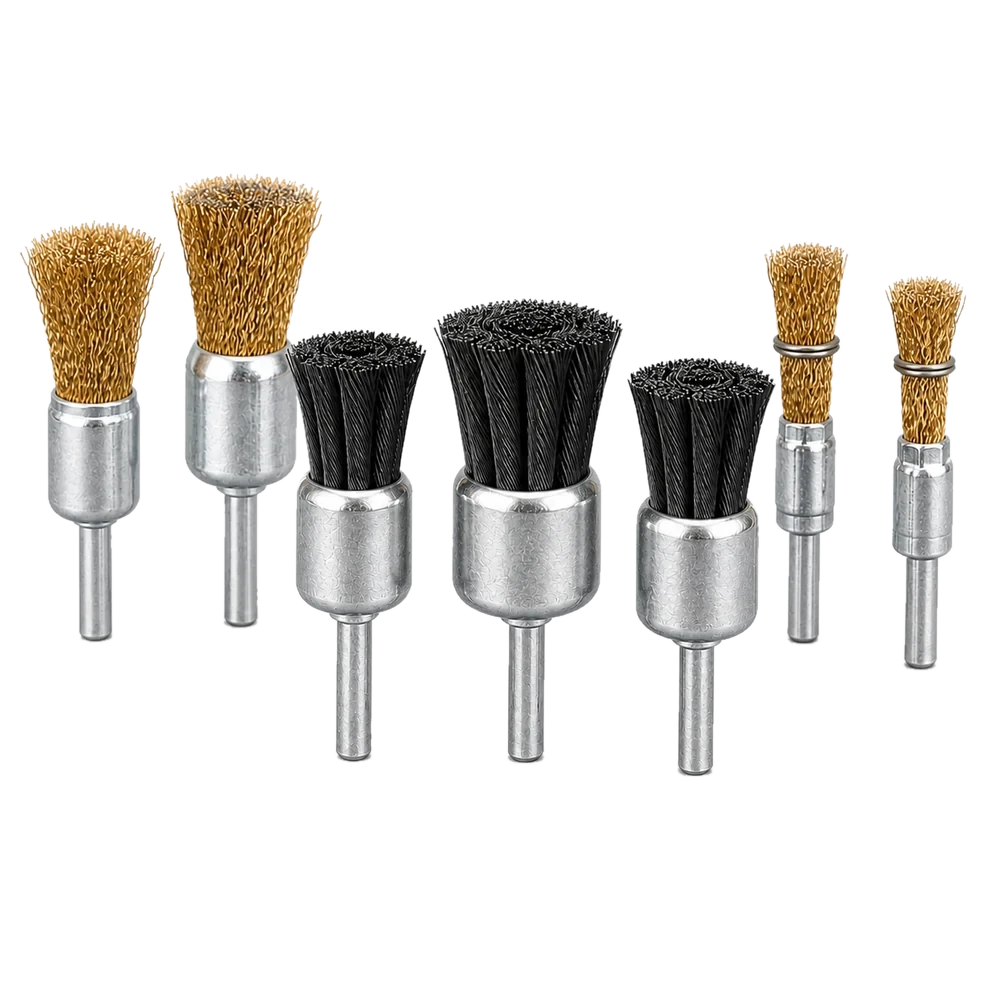

Wire End Brush

Technical data

Product specifications

Available in multiple sizes, grades or configurations. Contact us for specification recommendations and current availability.

Product Name

Wire End Brush | Industrial Wire Brushes | Deburring | Weld Cleaning | Surface Preparation | Wholesale / OEM / Private Label Supply

Product Type

Shank-mounted wire end brush / pen brush assortment

Wire Configurations

Black twist-knot steel wire / brass-colored crimped wire

Twist-Knot Brush Diameters

20 / 25 / 30 mm

Supplier-Referenced Crimped Brush Diameters

16 / 20 / 25 / 30 mm; additional listed diameters require confirmation per inquiry

Overall Length

75 mm for the 20 / 25 / 30 mm twist-knot reference versions (manual-measurement reference)

Shank Diameter

6 mm round shank; 6.35 mm and hex-shank options are supplier-referenced and must be confirmed per inquiry

20 mm Twist-Knot Reference

20 mm brush diameter × 75 mm overall length × 6 mm shank; reference weight 57 g

25 mm Twist-Knot Reference

25 mm brush diameter × 75 mm overall length × 6 mm shank; reference weight 72 g

30 mm Twist-Knot Reference

30 mm brush diameter × 75 mm overall length × 6 mm shank; reference weight 90 g

Wire Material

Steel wire; brass-colored crimped-wire configuration shown as a supplier-referenced option

Suitable Materials

Metal, wood and stone, subject to the selected wire configuration and application test

Suitable Applications

Focused rust removal, cleaning, weld-area preparation, deburring and access to confined or difficult-to-reach surfaces

Customization Options

Brush diameter, wire material, wire configuration, ferrule, round or hex shank, packaging and private label can be discussed; final specifications are confirmed per inquiry

Maximum Speed

Confirm the permitted RPM for the selected diameter, wire construction and compatible tool before use; the supplied references do not provide a verified RPM value
